Keyboard Shortcuts

Keyboard shortcuts

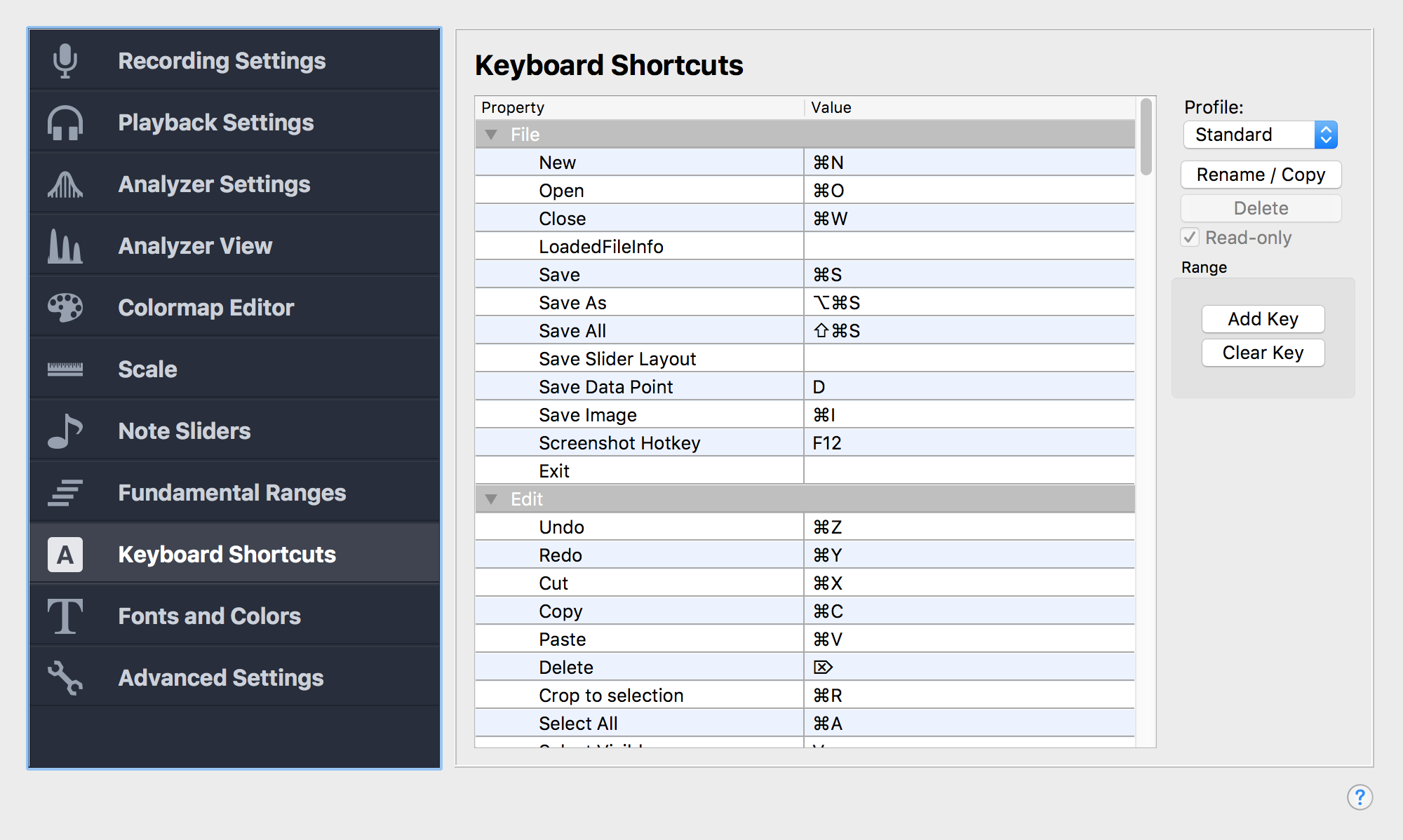

Figure 3.60. Keyboard shortcuts

On this settings page you can view and modify the keyboard shortcuts for all the different commands. To modify a shortcut, simply click on it and press the new key combination that you want to use for the selected command. Duplicate assignments will automatically be removed.

The Profile bar on the right allows you to save and retrieve different keyboard layouts. In addition, there are buttons to add and remove shortcuts to commands:

Add Key

When a command is selected, pressing the Add Key button will add a new shortcut to this key, so that a single command can have multiple shortcuts.

Clear Key

Clear the key for the selected command.

Here is an overview of the default shortcut assignments:

Command Shortcut
New Ctrl + N
Open Ctrl + O
Close Ctrl + W
Save Ctrl + S
Save As Ctrl + Alt + S
Save All Ctrl + Shift + S
Save Slider Layout
Save Data Point D
Save Image Ctrl + I
Screenshot Hotkey F12
Send Screenshot Email Shift + F12
Undo Ctrl + Z
Redo Ctrl + Y
Cut Ctrl + X
Copy Ctrl + C
Paste Ctrl + V
Delete Num Del
Crop to selection Ctrl + R
Select All Ctrl + A
Select Visible V
Set selection S
Reset selection Esc
Lock selection L
Replace with silence
Insert silence
Reinsert silence
Zoom in current view 1
Zoom out current view 2
Zoom in Shift + 1
Zoom out Shift + 2
Zoom to fit selection 3
Zoom out fully 4
Center on reticule 5
Timeline Ctrl + F2
Waveform Ctrl + F3
Staff View Ctrl + F4
Piano View Ctrl + F5
Status Bar Ctrl + F6
FileMarkerList Ctrl + F7
VowelChart Ctrl + F8
Waveform Time Scale
Frequency Scale
Spectrum Intensity Scale Ctrl + F9
Spectrogram Time Scale Ctrl + F10
Reset Window Layout
Set Language
Toggle Language Ctrl + Shift + L
Full Screen Alt + Enter
Add Filter F
Enable Realtime Preview
Apply Filters
Filter Additively
Filter Subtractively
Add and edit Marker Ctrl + M
Add Marker M
Add Range Marker
Add Thumb up Marker G
Add Thumb down Marker B
Delete Marker Ctrl + Num Del
Go To Previous Marker Q
Go To Next Marker W
Zoom To Previous Marker Shift + Q
Zoom To Next Marker Shift + W
Merge Markers
Search Markers Ctrl + F
Edit Current Marker
Zoom to Current Marker E
Activate Marker 1
Activate Marker 2
Activate Marker 3
Activate Marker 4
Activate Marker 5
Activate Marker 6
Activate Marker 7
Activate Marker 8
Activate Marker 9
Activate Marker 10
Rewind to start Home
Rewind page Page Up
Rewind Ctrl + Left
Play and Stop Space
Record Ctrl + Space
Record R
Forward Ctrl + Right
Forward page Page Down
Forward to end End
Replay last take
Loop playback
Play Selected Tones Enter
Stop Playing Tones Backspace
Deselect all Tones Ctrl + Backspace
Options F10
Increase input volume
Decrease input volume
Increase output volume
Decrease output volume
NewWindowOnCurrentSelection Ctrl + Shift + N
Tile horizontally Ctrl + Shift + H
Tile vertically Ctrl + Shift + V
Maximize current window Ctrl + Shift + M
Close all Ctrl + Shift + W
Close all but active Ctrl + 0
Note Sliders
Insert Note Slider N
Use Note Transcription Tool T
Fix Sliders on Screen
Toggle Spectrum
Toggle Spectrogram
Toggle Pitch
Disable Analyzer Display 7
Show Spectrogram 8
Show Spectrum 9
Show Spectrogram and Spectrum 0
Linear Scale Ctrl + 1
Log Scale Ctrl + 2
Vertical Scale Ctrl + 3
Horizontal Scale Ctrl + 4
Show Notename Ctrl + 5
Show Frequency Ctrl + 6
Use sharp accidental A
Transparent Sliders Ctrl + 7
Snap to tempered Ctrl + 8
Draw tempered lines Ctrl + 9
Option Pages
Audio Settings F2
Device Options F3
Analyzer Settings F4
Analyzer View F5
Colormap Editor F6
Scale F7
Sliders F8
File Export
Save As Wav
Save As Flac
Save As Ogg
Save As Mp3
Send Email As Ogg
Send Email As Mp3
Save Copy As Ogg
Save Copy As Mp3
1 Minimal Toolbar
2 One-line Toolbar
3 Default Toolbar
4 Full Toolbar
Standard Frequency Range
Standard Time Zoom

Table 3.6. Keyboard Shortcuts
